Electrodes Range
Our electrodes and anodes are manufactured for different types of electro-chemical analysis. Electrodes are available with a closed or open front cylinder. We use a Unimesh expanded sheet for the basket which is lighter and has excellent strength and structure, ideal for electrogravimetry processes. The frame is made from platinum 3% iridium for extra strength and is made at 1.5mm diameter.
Other than the table below we can manufacture any shape or size to your specifications, varying basket size or wire diameters.

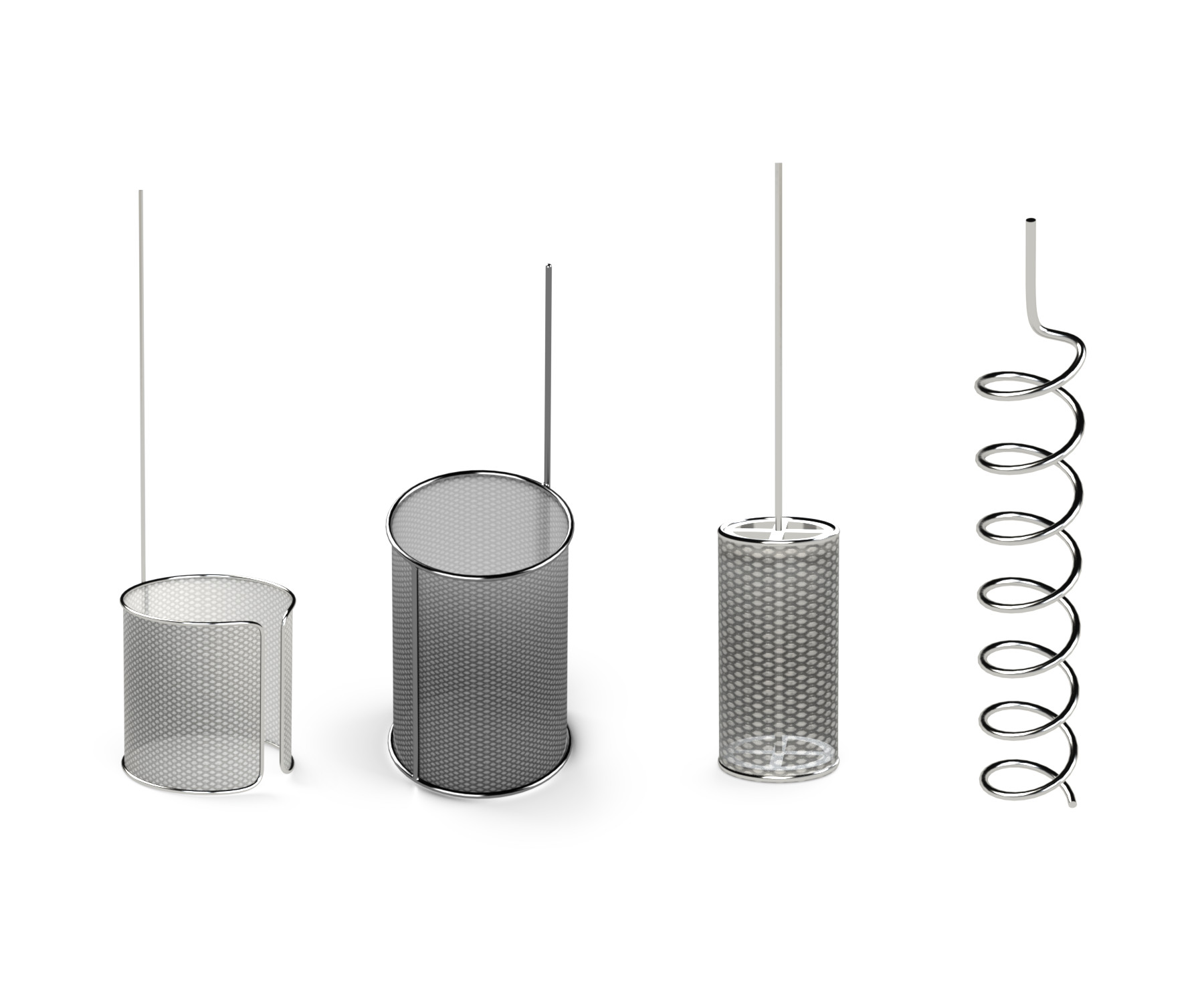

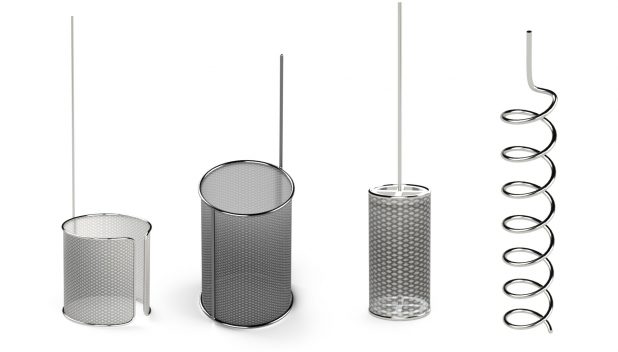

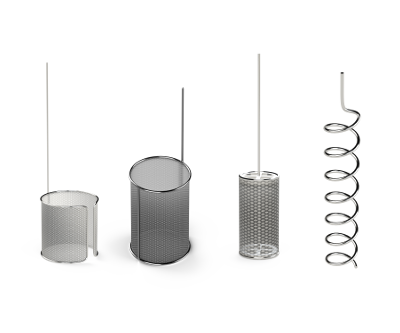

| Code | Weight (gm) | Description | Total stem height (mm) | Cylinder diameter (mm) | Cylinder height (mm) |
|---|---|---|---|---|---|

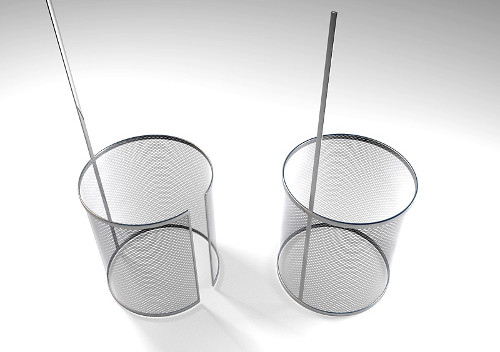

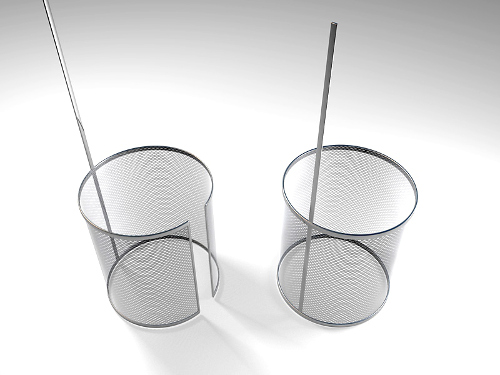

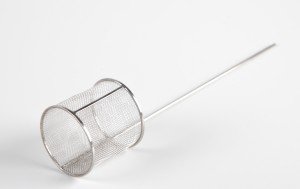

| EF3535 | 21 | Mesh cylinder with side stem | 150 | 35 | 35 |
| EF3550 | 24 | Mesh cylinder with side stem | 150 | 35 | 50 |
| EF5050 | 31 | Mesh cylinder with side stem | 150 | 50 | 50 |
| EF4542 | 27 | Mesh cylinder with side system and 15 mm open front | 150 | 45 | 42 |
| ES1071 (spiral) | 12 | 1.3mm diameter x 7 spirals x 15mm diameter spirals | 150 | 15 | 50 |
| Code | Weight (gm) | Description | Wire gauge (mm) | Total stem length (mm) | Cage height (mm) |
|---|---|---|---|---|---|

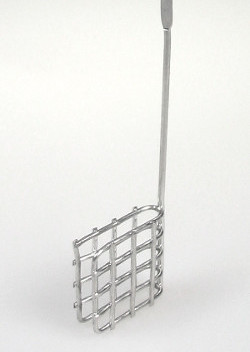

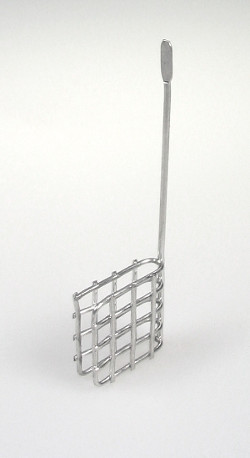

| SCHO18G | 3.8 | Wire mesh bent U-Shape | 18 | 40 | 12 |
| SCHO22G | 1.6 | Wire mesh bent U-Shape | 22 | 40 | 12 |
| Code | Weight (gm) | Height (mm) | Width (bent) (mm) | Body height |
|---|---|---|---|---|
| SAMC-OGG | 3.9 | 44.4 | 9.5 | 12.7 |
