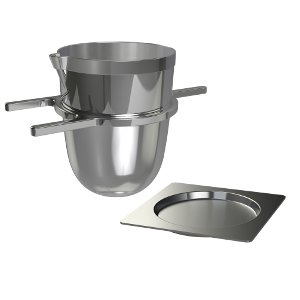

XRF Crucibles & Moulds suitable for Vulcan machines
- Rolled Lip Crucible
- Three Pin Crucible
- Three Pin Crucible v2
- Offset Three Pin Crucible
- New Generation Crucible
- Mould (Square Flange)
XRF Platinum Crucibles suitable for use with Vulcan fusion machines

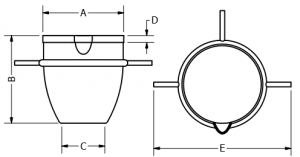

| Code | A | B | C | D | E | Estimated Weight (g) |
|---|---|---|---|---|---|---|
| SC4 | 33mm | 38mm | 21mm | 7mm | 39mm | 40 |
Platinum Crucibles are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy). All fusion labware products are manufactured by XRF Scientific in Australia.

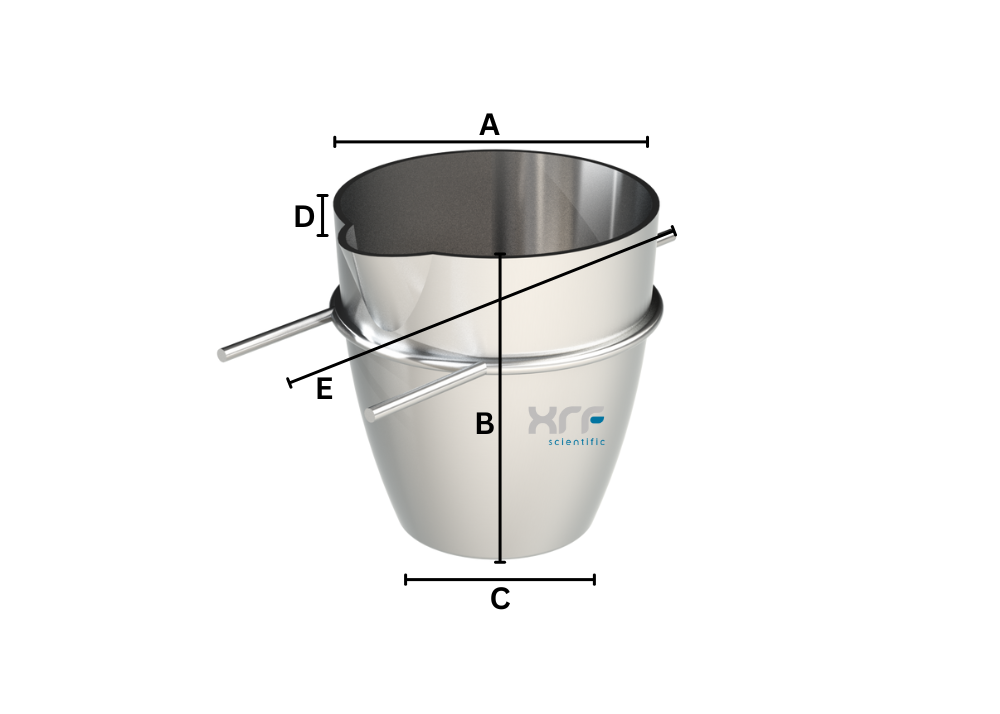

XRF Platinum Crucibles suitable for use with Vulcan fusion machines
| Code | A | B | C | D | E | Estimated Weight (g) |
|---|---|---|---|---|---|---|
| SC1 | 35mm | 38mm | 20mm | 5mm | 60mm | 31 |
| SC2 | 44mm | 38mm | 26mm | 5mm | 60mm | 50 |
| SC3 | 39mm | 43mm | 22mm | 5mm | 60mm | 38 |
Platinum Crucibles are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy). All fusion labware products are manufactured by XRF Scientific in Australia.

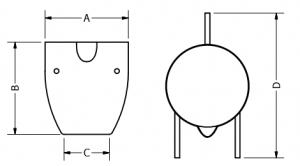

XRF Platinum Crucibles suitable for use with Vulcan fusion machines
| Code | A | B | C | D | E | Estimated Weight (g) |
|---|---|---|---|---|---|---|
| SC5 | 34mm | 38mm | 20mm | 60mm | 13mm | 25 |
| SC10 | 34mm | 38mm | 20mm | 60mm | 13mm | 38 |

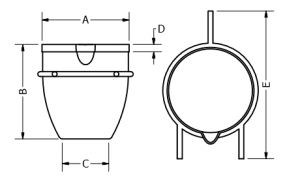

With Reinforced Rim
| Code | A | B | C | D | E | F | Estimated Weight (g) |
|---|---|---|---|---|---|---|---|
| SC6 | 34mm | 38mm | 20mm | 3mm | 60mm | 13mm | 44 |
| SC7 | 36mm | 38mm | 22mm | 3mm | 60mm | 13mm | 51 |
| SC9 | 34mm | 38mm | 20mm | 3mm | 60mm | 13mm | 33 |
Platinum Crucibles are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy). All fusion labware products are manufactured by XRF Scientific in Australia.

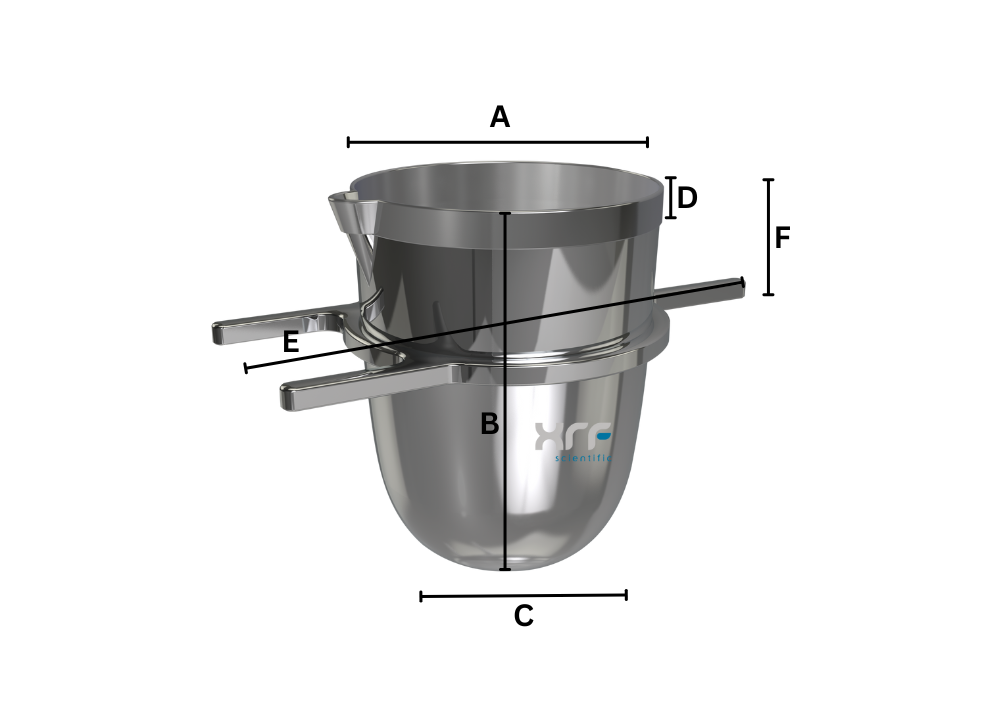

XRF Platinum Crucibles suitable for use with Vulcan fusion machines
With Reinforced Rim
| Code | A | B | C | D | E | F | Estimated Weight (g) |
|---|---|---|---|---|---|---|---|
| SC8 | 34mm | 38mm | 20mm | 3mm | 60mm | 13mm | 44 |
Platinum Crucibles are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy). All fusion labware products are manufactured by XRF Scientific in Australia.
XRF Platinum Crucibles suitable for use with Vulcan fusion machines – laser cut rim version
| Code | A | B | C | D | E | F | Estimated Weight (g) |
|---|---|---|---|---|---|---|---|
| SC36 | 34mm | 38mm | 20mm | 3mm | 60mm | 13mm | 44 |
| SC39 | 34mm | 38mm | 20mm | 3mm | 60mm | 13mm | 34 |
Platinum Crucibles are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy). All fusion labware products are manufactured by XRF Scientific in Australia.

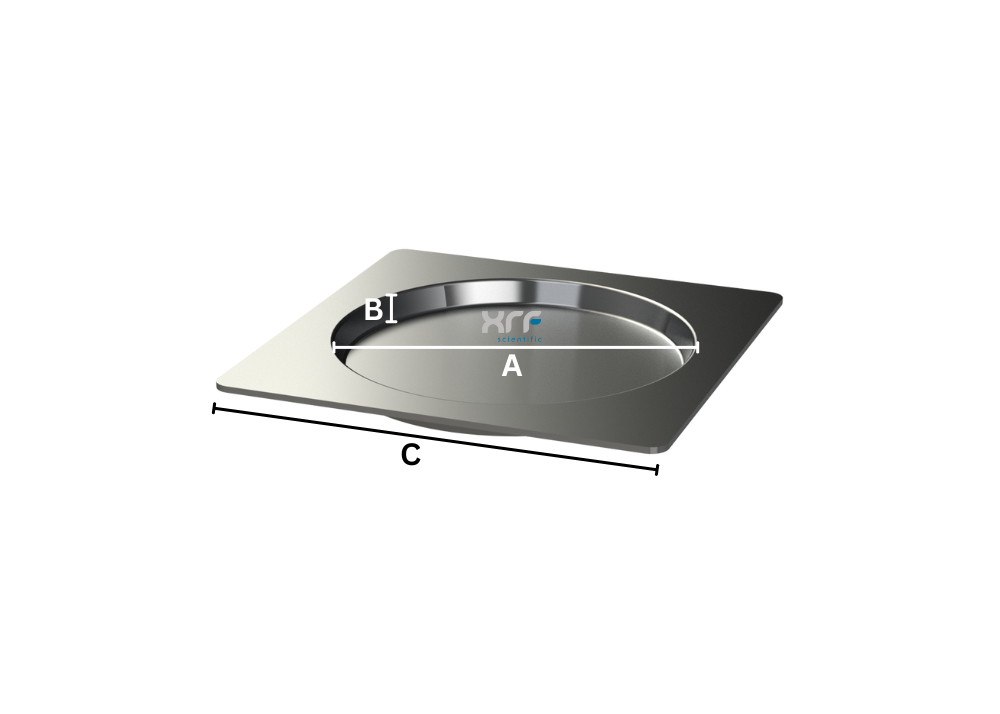

XRF Platinum Moulds suitable for use with Vulcan fusion machines
| Code | A | B | C | Estimated Weight (g) |
|---|---|---|---|---|
| SM1 | 29/31mm | 3mm | 41mm | 27 |
| SM2 | 30/32mm | 3mm | 41mm | 29 |
| SM3 | 32/34mm | 3mm | 41mm | 31 |
| SM4 | 34/36mm | 3mm | 51mm | 45 |
| SM5 | 39/41mm | 3mm | 51mm | 45 |
Platinum Moulds/Casting Dishes are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy). All fusion labware products are manufactured by XRF Scientific in Australia.
Request a Quote
